LT6230CS6#TRMPBF
Manufacturer:
Analog Devices
Mfr.Part #:
LT6230CS6#TRMPBF
Datasheet:
Description:

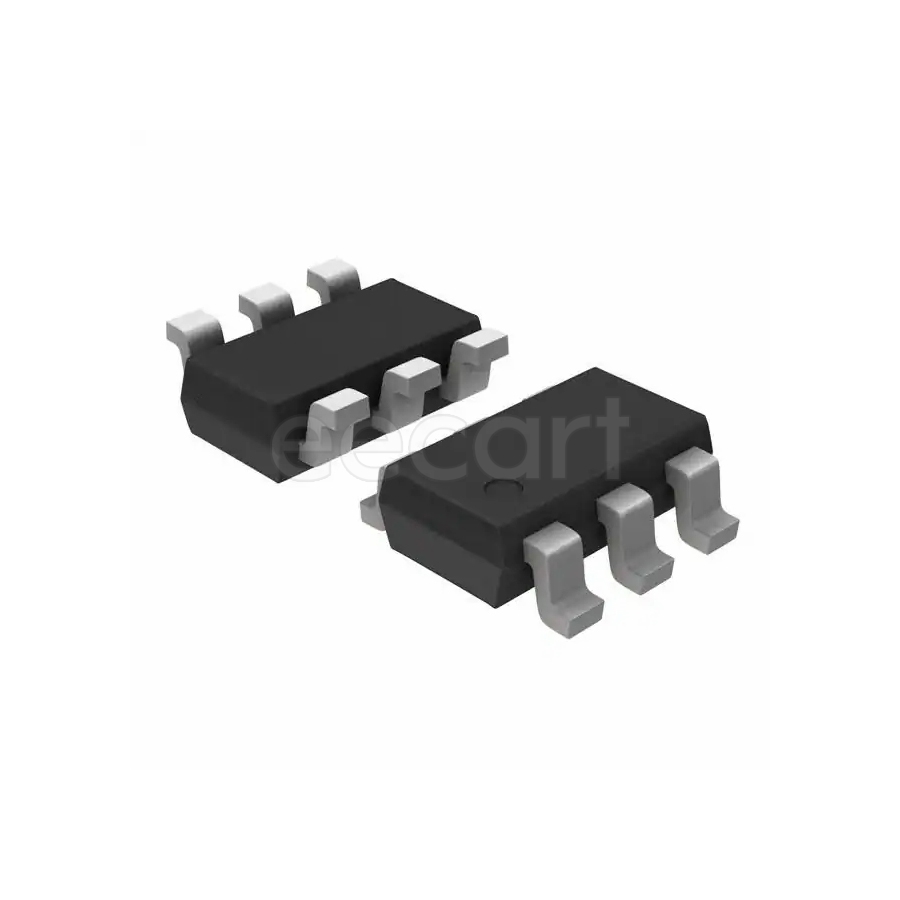

Amplifiers - Op Amps, Buffer, Instrumentation TSOT-23-6 SMD/SMT Ultra Low Noise Amplifier Number of Circuits:1
| Parameter | Value |
|---|---|
| Length | 2.9 mm |
| Width | 1.75 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 6 |
| Height | 900 µm |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Number of Elements | 1 |
| Number of Circuits | 1 |
| Bandwidth | 215 MHz |
| Operating Supply Voltage | 12 V |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Max Supply Voltage | 12.6 V |
| Min Supply Voltage | 3 V |
| Number of Channels | 1 |
| Slew Rate | 70 V/µs |
| Common Mode Rejection Ratio (CMRR) | 120 dB |
| Operating Supply Current | 3.3 mA |
| Input Bias Current | 5 µA |
| Dual Supply Voltage | 5 V |
| Output Current per Channel | 30 mA |
| Gain Bandwidth Product | 215 MHz |
| Input Offset Voltage (Vos) | 500 µV |
| Max Dual Supply Voltage | 6.3 V |
| Min Dual Supply Voltage | 1.5 V |
| Voltage Gain | 106.02 dB |
| Number of Amplifiers | 1 |
| Input Voltage Noise Density | 1.1 nV/sqrt Hz |
| Nominal Gain Bandwidth Product | 215 MHz |
| Schedule B | 8542330000 |
| Amplifier Type | Ultra Low Noise Amplifier |
Stock: 2762
Distributors
pcbx
pcbxUnit Price$2.57765
Ext.Price$2.57765
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.57765 | $2.57765 |
| 10 | $1.95030 | $19.50300 |
| 25 | $1.79375 | $44.84375 |
| 50 | $1.70541 | $85.27050 |
| 100 | $1.62142 | $162.14200 |
| 300 | $1.55417 | $466.25100 |
| 500 | $1.48972 | $744.86000 |
